Printed, painted, assembled and installed!

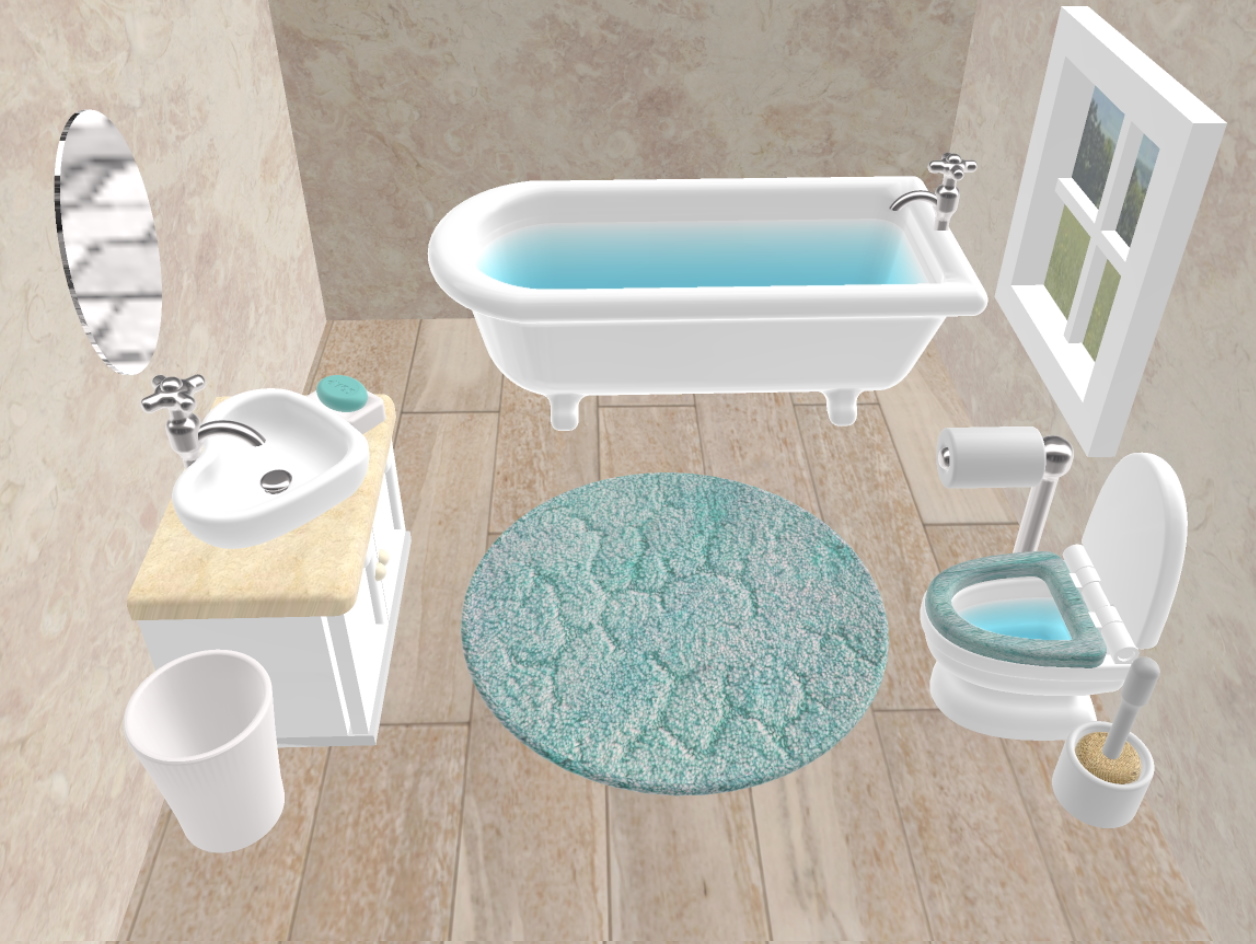

This Bathroom set includes a toilet, a cabinet with sink, the already published Bathtub and some prop ideas.
The original plan was to include also a trash can, soap cup, toilet roll holder and toilet brush but that has been put on hold for now, maybe there will be a next update :)
Parts

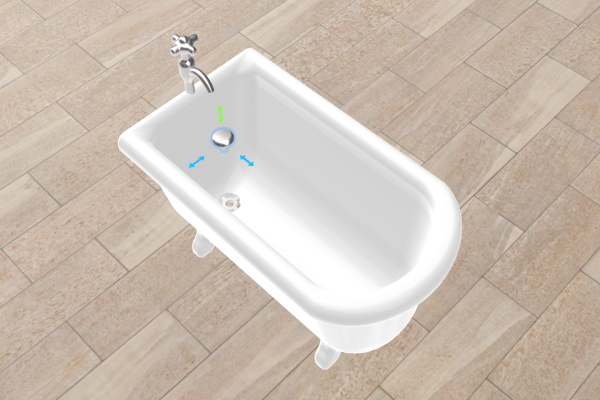

The most difficult print in the set is the Bathtub. You can read more about the challenges in the Bathtub post.

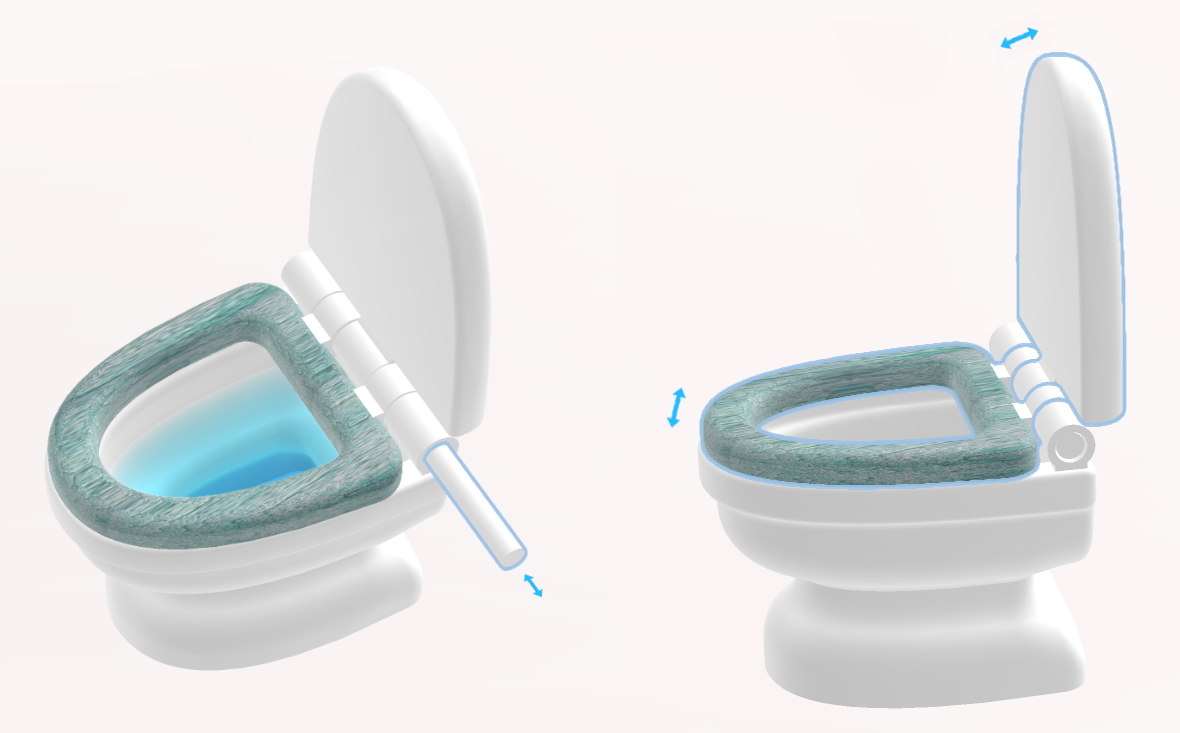

The toilet seat and lid are assembled by using a cut off filament part. Clean the holes properly from any print residue and then thread the filament through them, you might need to push carefully. There should be some resistance so that the lid can be placed at an upright angle without falling back down again.

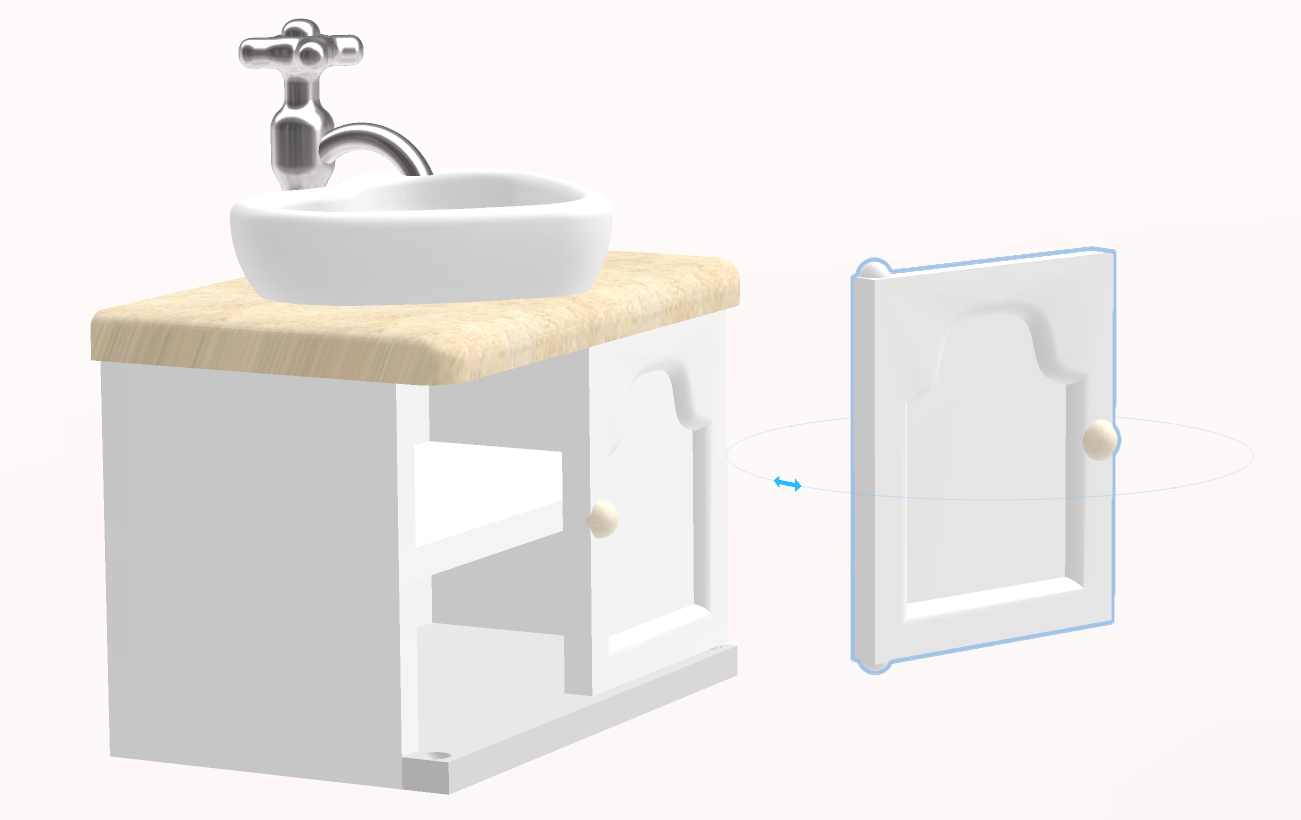

The cabinet doors have ball joints and can gently be pushed into place.
The sink and faucet can be glued on to make sure they stay in place.
Printing & orientation
I used different layer heights depending on which part I printed. For instance I used a layer height of 0.15 mm for the Bathtub to reduce printing time, and 0.07 mm for the faucet and plug to make sure all details show. Same goes for the toilet which was printed with a layer height of 0.1 mm while I used 0.07 mm for the seat and so on.
Print orientation and other print suggestions for the Bathtub can be found in the Bathtub post.
I used support for the toilet while the seat and lid can be printed without.

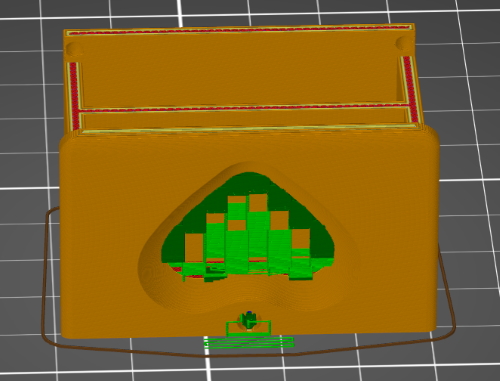

If the cabinet is tilted and printed on it's back it barely needs any support but I recommend to add some for the heart shaped hole.

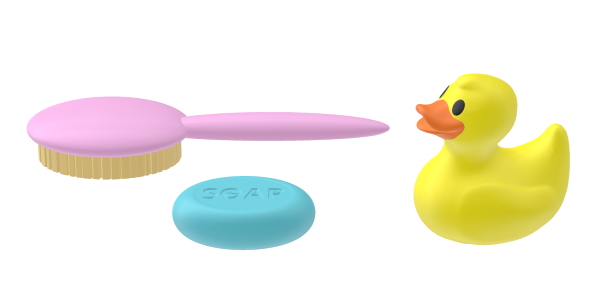

Prop suggestions
Rubber Duck designed by Willie.
Soap & brush are included in the linked set.
Feedback
Feedback is appreciated and if you have any questions related to this design or 3D printing in general, don't hesitate to ask :)
Please send an email to enelyalonde@gmail.com or contact me on Thingiverse / Prusa Prints if you have new ideas, improvement suggestions or would like an item updated.
If you do print any of my designs, it would make my day if you would send me a picture of the print :)
Download files
All files are now available at Thingiverse and Prusa Prints
Gallery
